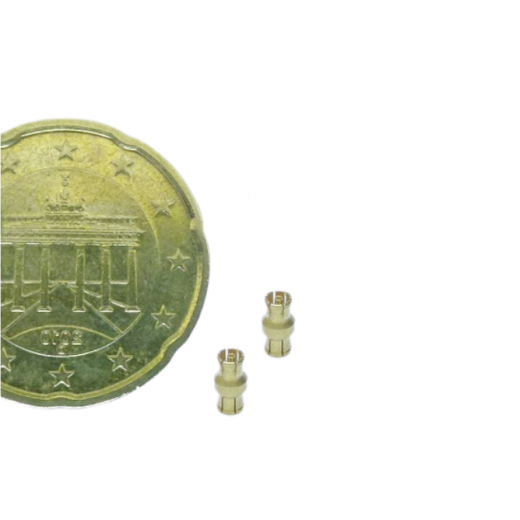

SMPM JACK TO JACK ADAPTER
Description
RF Connector SMPM Jack To Jack Adapter Material and Plating
Customer Drawing ADD INQUIRY Product Specifications
| Body | BeCu@Gold 2~3u" |
| Insulator | PTFE (Teflon) Electrical |
| Impedance | 50 Ohm |
| Frequency Range | DC ~ 26.5 GHz |
| VSWR | 1.3 max. |
| Working Voltage | 325 V rms |
| Insertion Loss | ≤ 0.3 dB |
| Insulator Resistance | ≥ 5 GQ |
| Center Contact Resistance | ≤ 6.0 ml |
| Outer Contact Resistance | ≤ 2.0 ml |
| Temperture Range | -55°C ~ +165°C |
Environmental
RoHS and REACH compliant
