JACK

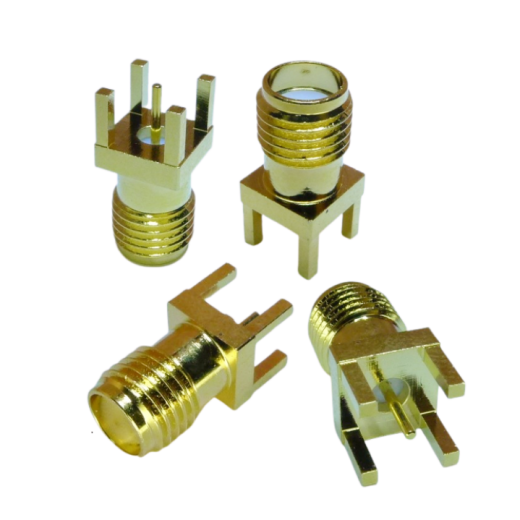

SMA JACK SOLDER FOR PCB MOUNT
Description
RF Connector SMA 50ohm Jack Straight Solder For PCB Mount Material and Plating
Customer Drawing ADD INQUIRY Product Specifications
| Body | Brass@Gold 2-3u" |
| Insulator | PTFE (Teflon) |
| Center Contact | BeCu@Gold 2~3u" |
| Impedance | 50 Ohm |
| Frequency Range | DC ~ 18 GHz |
| VSWR | 1.25 max. |
| Working Voltage | 500 V rms |
| Insertion Loss | ≤ 0.3 dB |
| Insulator Resistance | ≥ 5 GR |
| Center Contact Resistance | ≤ 3 m |
| Outer Contact Resistance | ≤ 2.0 ml |
| Temperture Range | -55°C ~ +165°C |
Environmental
RoHS and REACH compliant
